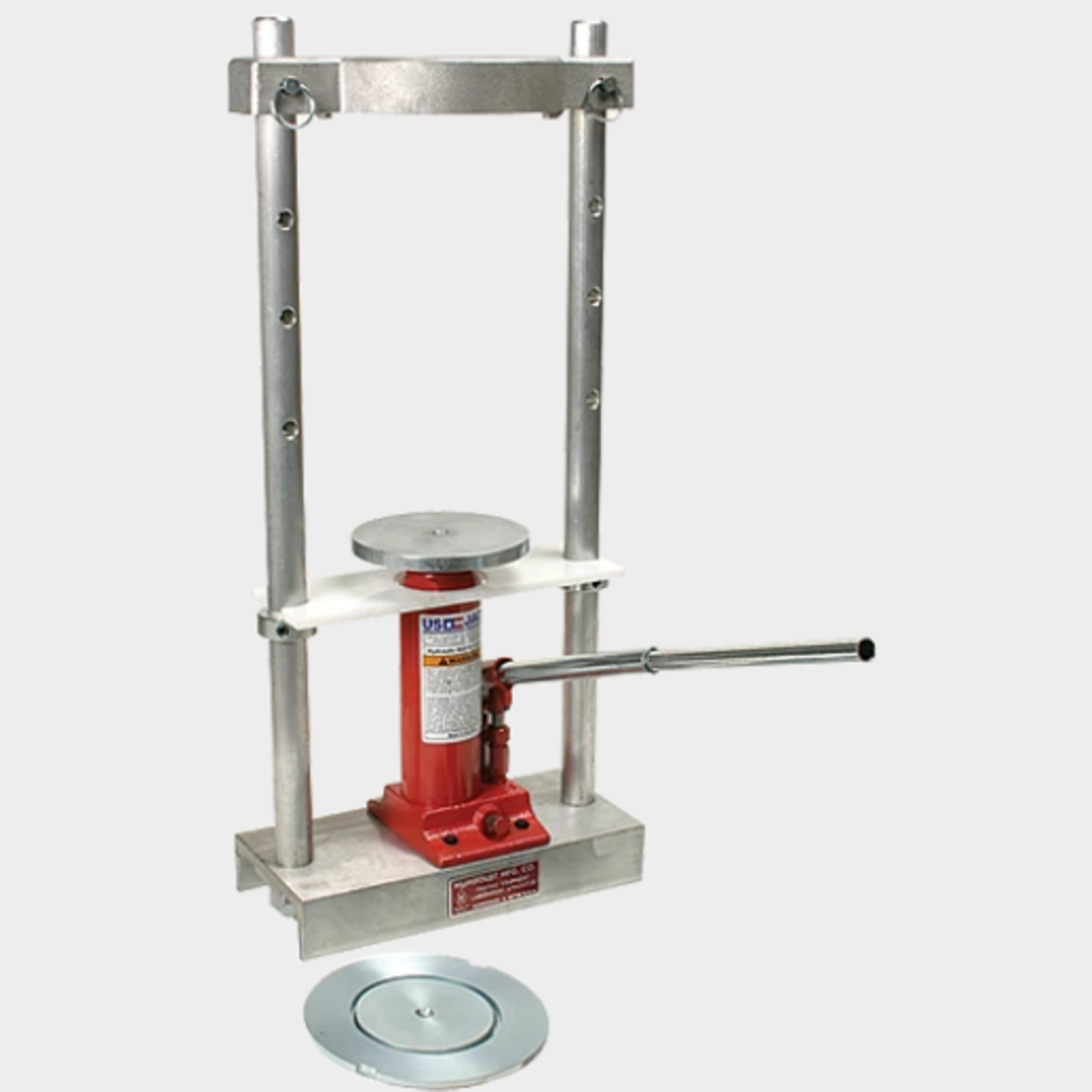

Asphalt Sample Ejector, Hand-Operated
Supports the following standards: ASTM D5581, ASTM D6926, AASHTO T245
Designed for lab and field use to extract asphalt samples from either 4" or 6" compaction molds. The ejection force is generated by means of a 3-ton (27.7kN) capacity hand-operated hydraulic jack. The cast-aluminum ejector head assembly can be positioned at different heights through the use of quick release pins. This enables the operator to easily match the ejection travel to the height of the mold being used. Maximum stroke distance for this ejector is 7.5". Overall dimensions: 13"W x 6"D x 27"H (330 x 152 x 686mm).
For more detailed information about Marshall Testing, please visit the Asphalt Marshall Testing landing page.
