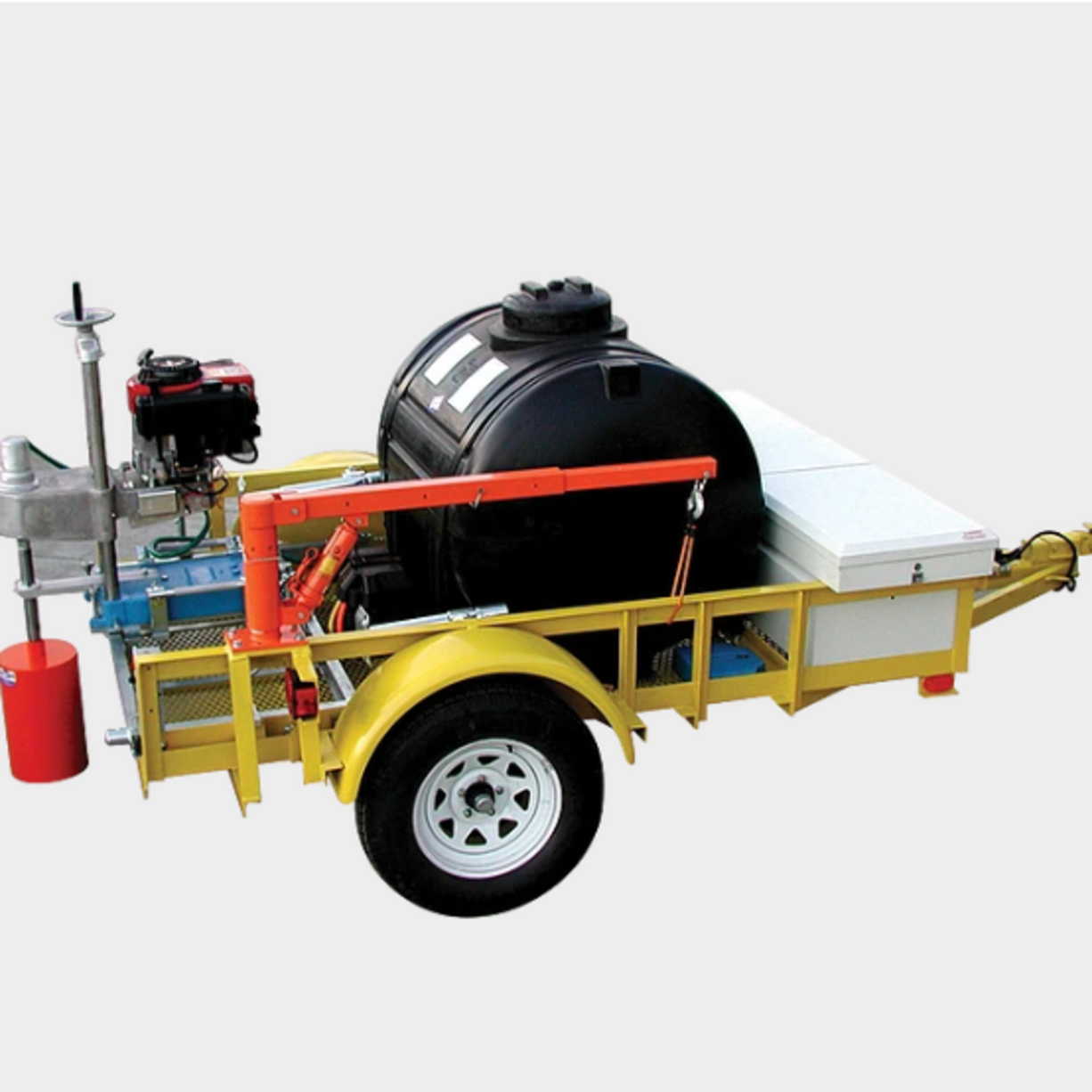

Core Drill, Trailer-Mount 16" Capacity
This complete stand-alone core drill rig offers field independence, versatility, dependability, and easy single-person operation. Provides mobile yet very stable drilling platform, which extends bit life. Provides exceptional solution for remote locations.
Features
- 17 HP gasoline-powered drill head with electric start, with 16" bit capacity and a 24" travel;
- Variable drill head positioning system, which allows drill head movement of approx. 43" side-to-side and 12" fore and aft for accurate hole placement;
- Hydraulic-assisted machine lift for single-handed removal and replacement of drill;
- Lockable, weather-resistant toolbox;
- 200-gal. water tank and 12 VDC water pump;
- 5' x 8' steel-construction trailer, equipped with electric brakes and pre-wired for brake and tail lights.
Specifications
Horse power:
17
Cycle:
4
HR-2600 bit capacity:
16"
HR-2601 bit capacity:
16"
HR-2600 auger capacity:
NA
HR-2601 auger capacity:
8"
Carriage travel:
24"
