Cylinder Splitting Set

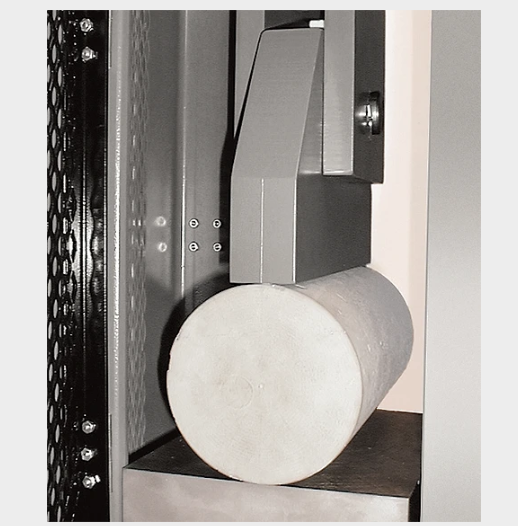

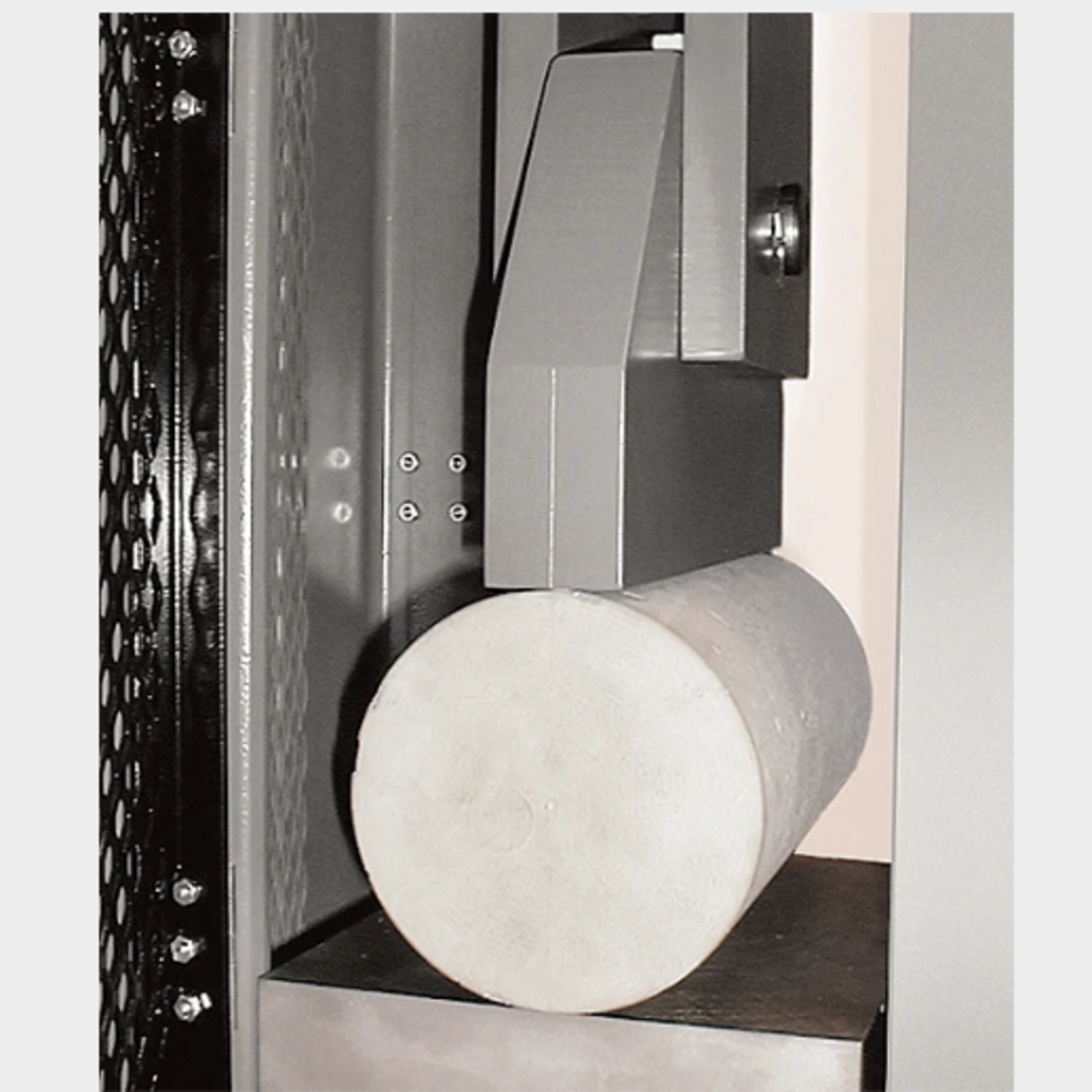

Cylinder Splitting Set

Supports the following standards: ASTM C496, AASHTO T198

The cylinder splitting head has a bearing contact area of 12" (304 mm) long by 2" (50 mm) wide, its surface is machined plane to .001" (.025 mm) and has a scribed center line of the face of the bar for easier centering of test samples.

Cylinder Splitting Sets are used to determine the splitting tensile strength of concrete cylinders.
Meets ASTM C-496 and AASHTO T-198 specifications.
An optional splitter spacer assembly HCM-0122A bolts to the top of the fixture, to allow testing of 4" x 8" cylinders (New models only). (sold seperatly)

Note: A lower bearing plate 12 ½" (317 mm) long by 7" (178 mm) wide is supplied with HCM-0120 Splitting Test Set for use in HCM-2500 series machines.

Note: HCM-0122A spacer assembly can only be used on Cylinder Splitters purchased after 7-14-2022.
