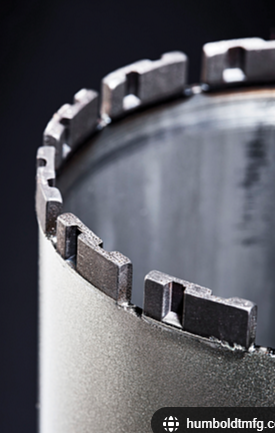

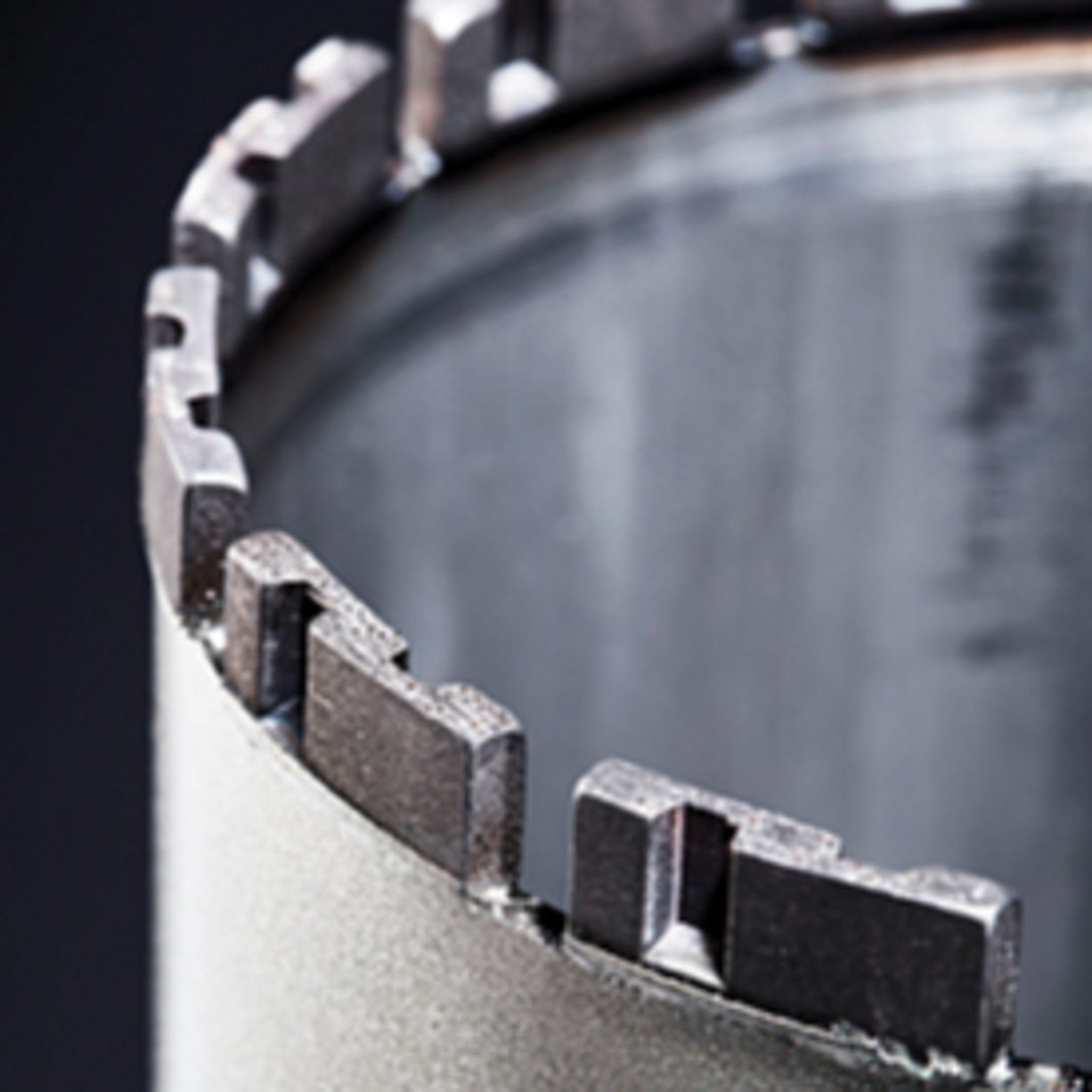

Diamond Drill Bits, High-Performance, Small

These professional-quality, diamond drill bits are designed for drilling cured concrete with medium to soft aggregate with or without steel reinforcement. They have a total segment height of .400" (10.160mm) (.300" (7.620mm) diamond depth and .100 (2.54mm) segment base. The standard bit length is 13" (330.200mm) and the integral thread adapter is 1.25"– 7 thread.



Specifications Size	Medium*** Inches	mm 1/2	13	HR-2570.5 5/8	17	HR-2570.625 3/4	19	HR-2570.75 7/8	22	HR-2570.875 1	28	HR-2570.1
