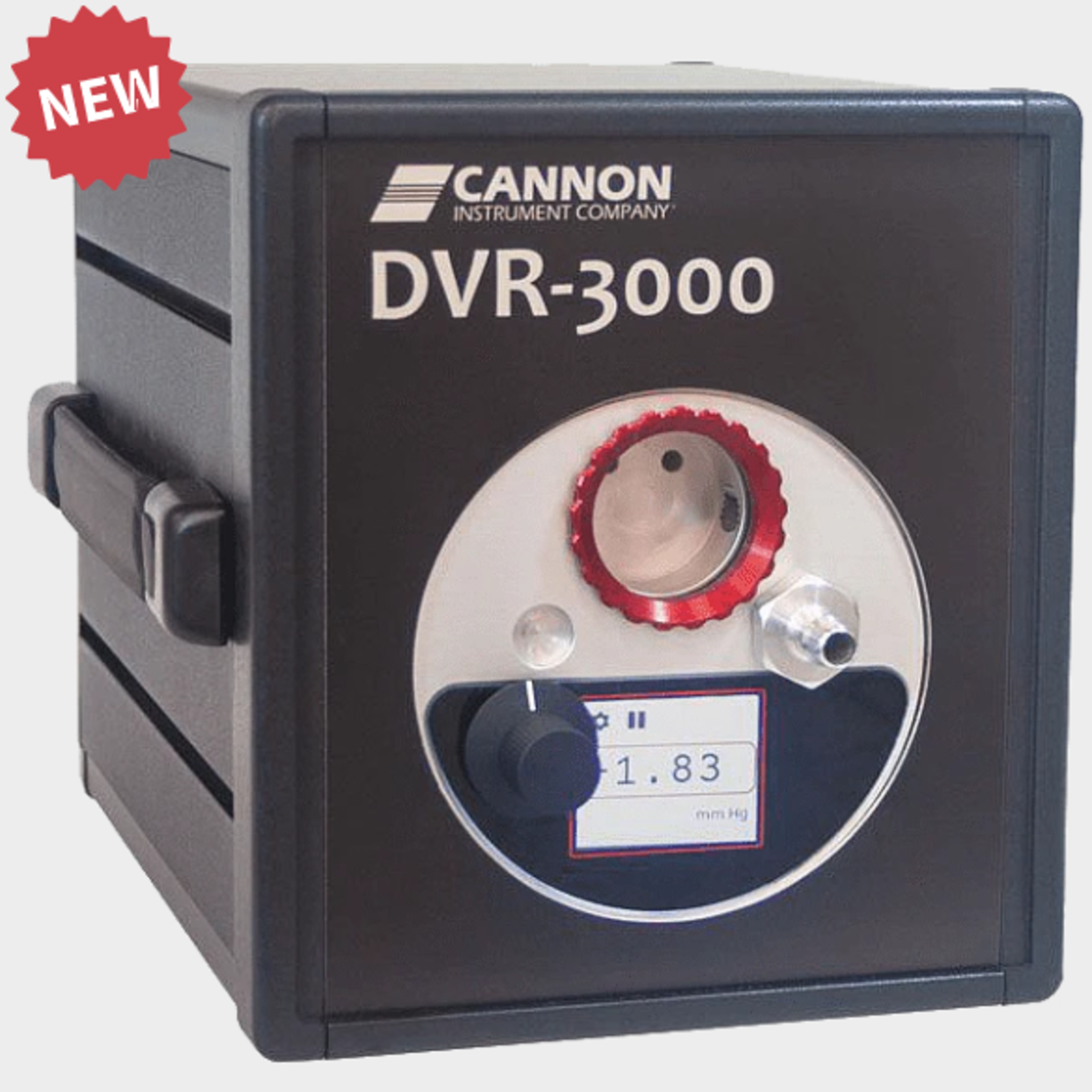

Digital Vacuum Regulator with Vacuum Pump, 120/220V 50/60Hz

Digital Vacuum Regulator with Vacuum Pump, 120/220V 50/60Hz

Supports the following standards: ASTM D2171

The DVR-3000 digital vacuum regulator provides precise measurement and control of vacuum at 300 mm Hg below atmospheric pressure. Vacuum set point can be altered to any value within the operational range of 95 mm Hg to 450 mm Hg below atmospheric pressure. Solid state components contain no hazardous mercury.

Features

Supplied with NIST certification of measurement accuracy
Preset to regulate vacuum at 300 mm Hg below atmospheric pressure (consistent with ASTM D2171 requirements)
Configurable to User-Specific Needs
Vacuum set point can be effortlessly changed to fit custom applications
Trusted platform offers reliability and dependable support
Safe, Easy-to-Use Design
Solid state components do not contain hazardous mercury
Easy control input

Specifications

Operating range:

95—450 mm Hg below atmospheric pressure ± 0.5 mm Hg

Vacuum level :

displayed in mm Hg

Operating Conditions:

15 °C to 30 °C, 10% to 75% relative humidity (non-condensing), Installation Category II; Pollution Degree 2

Compliance:

CE Mark; EMC directive (2004/108/EC); Low voltage directive (2006/95/EC); HI-POT (1900 VDC, 60 sec.); ROHS Small footprint; 16.8 cm x 25.0 cm x 18.5 cm (6.62" x 10" x 7.25")

Request a quote
