Draw Rod Assembly

Draw Rod Assembly

Draw rods are included with all masonry model machines that have manual controllers. However, for machines with HCM-5080 and HCM-5070, the Draw Rod Assembly must be ordered separately. The draw rod system is designed to adjust the vertical working height of the load frame, allowing for the testing of samples of varying heights using spacers and test platens.

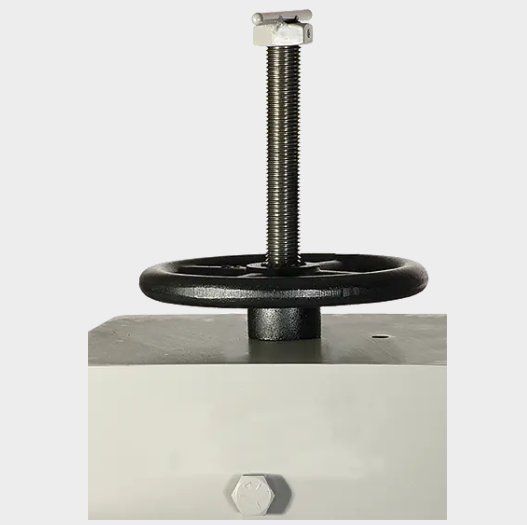

This system consists of a steel hand wheel with internal ball bearings and a threaded rod, which can be easily raised or lowered within the load frame for height adjustments. Spacers can be slid onto the rod, which is then threaded into the test platen, and the entire assembly is secured against the cross-head.

Part Number & Name:

HCM-0802 Draw Rod Assembly

Request a quote
