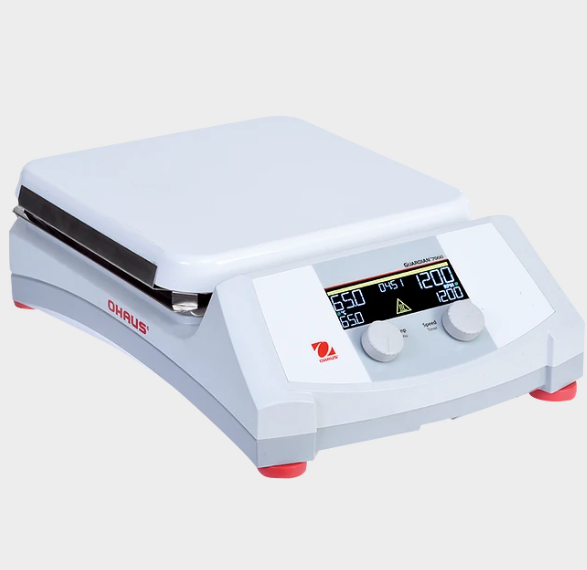

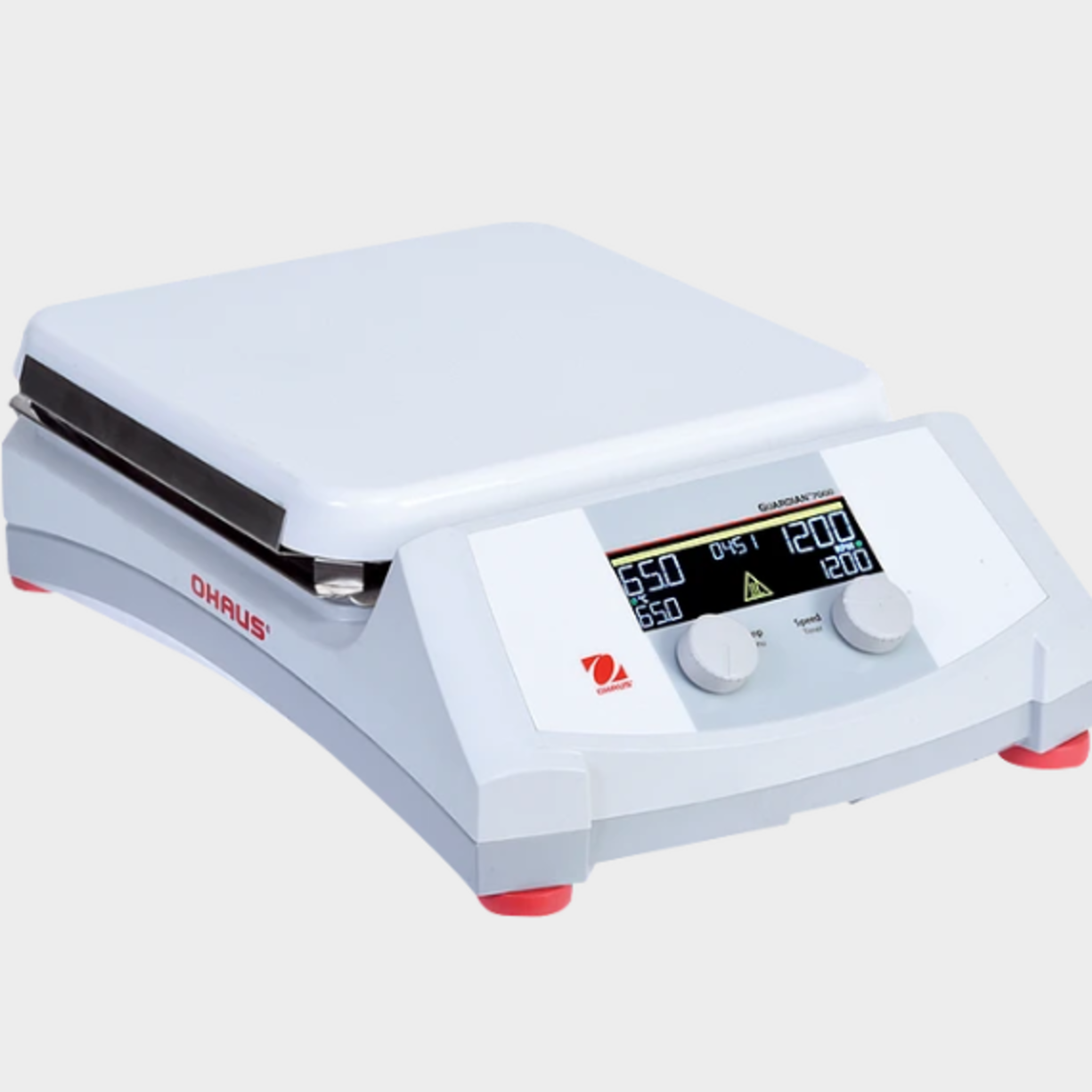

Guardian 7000 Ceramic, Hotplate/Stirrers

Supports the following standards: ASTM D5581, ASTM D6926, ASTM D6927, ASTM D4943

OHAUS Guardian 7000 Hotplate Stirrers are designed with outstanding safety features and superior heating and mixing performance. The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that channels spills away from internal components and the angled glass control panel. The bright LCD display includes intuitive icons, temperature, speed and time settings - all designed to monitor performance from across the lab.

Features
  • SmartPresence™ and SmartLink™ Technologies Ensure Supervised Operation— Protect your lab with patented SmartPresence™ and SmartLink™ technologies. These exclusive features automatically shut off the heater if no one is detected after a user set “time out” period has passed.
  • SafetyHeat™ System Protects the Lab— An industry-leading, early-detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an over-temperature condition occurs.
  • Powerful, Consistent Stirring Performance— Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
  • Customized Performance for Precise Applications— SmartHeat™ allows you to set the maximum temperature of the unit and SmartRate™ enables fast or slow temperature and speed ramp rates. The programming feature allows storage of 5 multi-step programs.
Specifications
Overall Dimensions:
42.2 x 28.6 x 12.2cm (16.6" x 11.25" x 4.8")
Top plate dimensions / Material:
17.8 x 17.8cm (7" x 7") Ceramic 25.4 x 25.4cm (10" x 10") Ceramic
Electrical (50/60 Hz):
120 volts ±10%: 11.2 amps 230 volts ±10%: 7.0 amps
Fuses:
120 volts: 15A quick-acting, 6.3x32mm, 125VAC 230 volts: 10A time-delay, 5x20mm, 250VAC
Temperature range:
Ambient +5° to 500°C
Temperature stability of top plate:
± 3% > 100°C, ± 2% ≤ 100°C
Temperature stability with temperature probe:
± 1% > 100°C, ± 1°C ≤ 100°C
Stir capacity:
18L
Speed range:
60 to 1600rpm
Speed stability:
±2%
Weight capacity:
Up to 14.5kg (32 lbs)
Request a quote Download Spec Sheet
