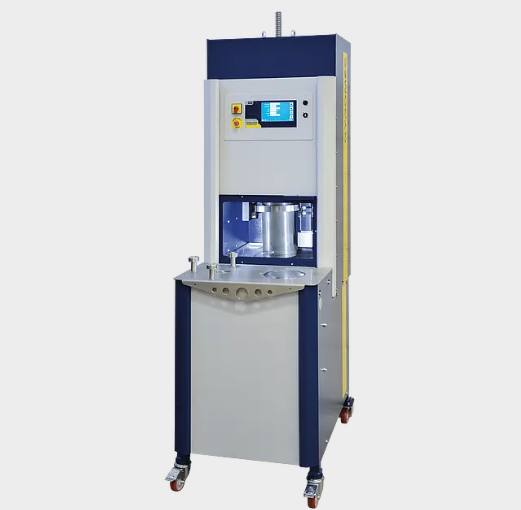

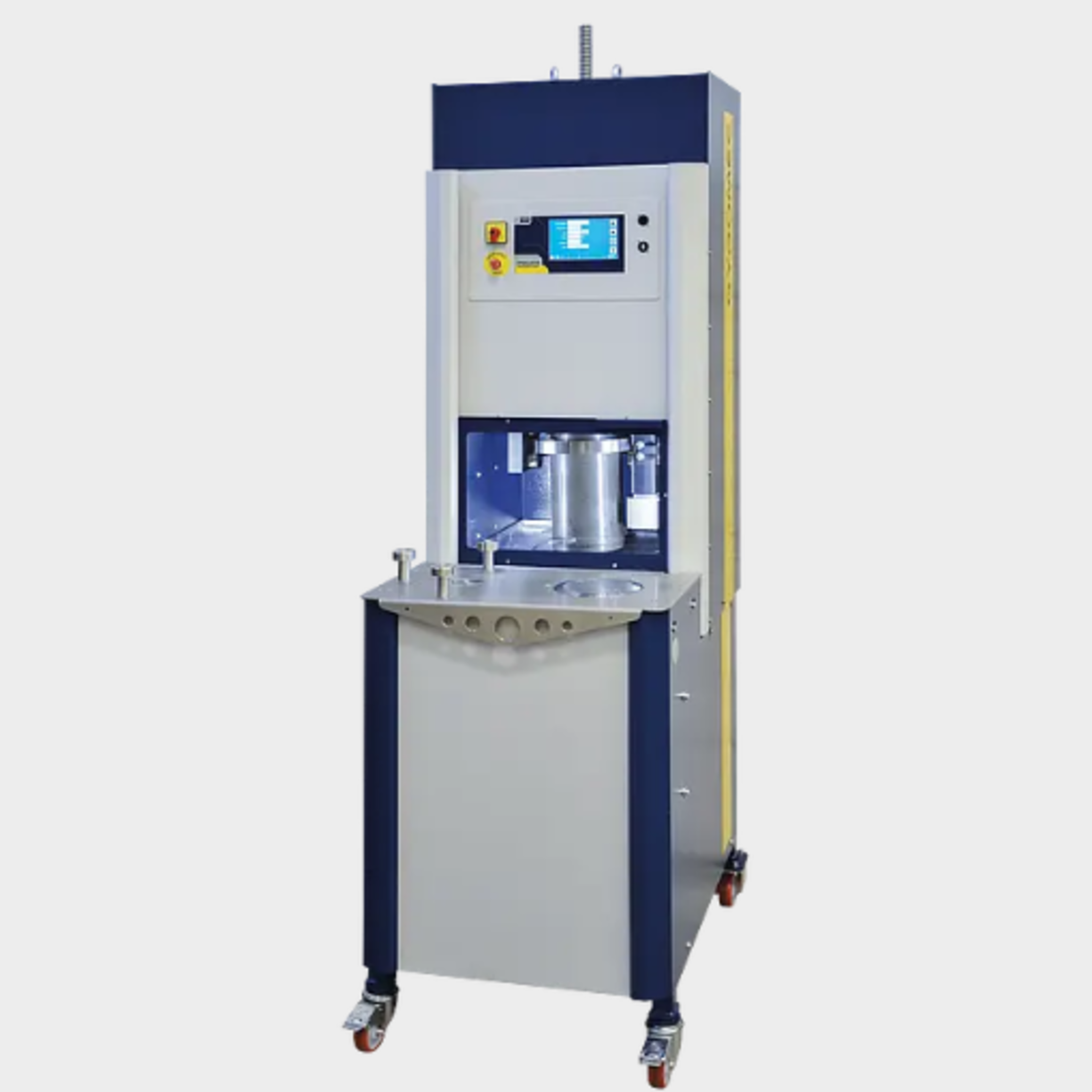

Gyratory Compactor

Supports the following standards: ASTM D6925, AASHTO T312, AASHTO TP4, EN 12697 10, EN 12697 31, SHRP M 002, AS/NZS 2891, NT BUILD 427

The HA-5951.4F Gyratory Compactor has multiples uses for both asphalt and concrete applications. It can be used to simulate and reproduce real compaction conditions and road paving to determine the compaction properties of asphalts in compliance with ASTM, EN and AS standards. It can also be used to simulate the kneading action of concrete mixes and recreate compaction process in precast production lines according to NT build 427.

The HA-5951.4F has been designed based on the U.S. DOT concept where compaction is achieved by the simultaneous action of a low static compression and a shearing action resulting from the motion of the axis of the mold, which generates a conical surface of revolution.

It is designed according to the International standards, providing perfect and precise compaction through a stable mechanism integrated with a solid and heavy-duty frame. The HA-5951.4F Gyratory uses electro-mechanical compaction where the load is applied by an electro-mechanical cylinder with a load cell positioned directly on the vertical actuator for precise load measurement.

Features

Rigid steel frame ensuring excellent angle control.
Full color 7" touch screen control unit, running like a standard PC.
Software for PC control data acquisition and processing.
Electronic angle positioning.
Dual angle option with double calibration AASHTO, EN and AS at 2 and 3.
Automatic adjustment of the gyratory angle is defined by the user (GYRORESEARCH).
Shear stress measurement (GYRORESEARCH).
Optional integrated electromechanical extruder.
Optional integrated balance.
