HCM-5090 Digital Indicator

Supports the following standards: ASTM C39, ASTM C78, ASTM C293, ASTM C469, ASTM C496, ASTM C1019, ASTM C109, BS EN 12390-3

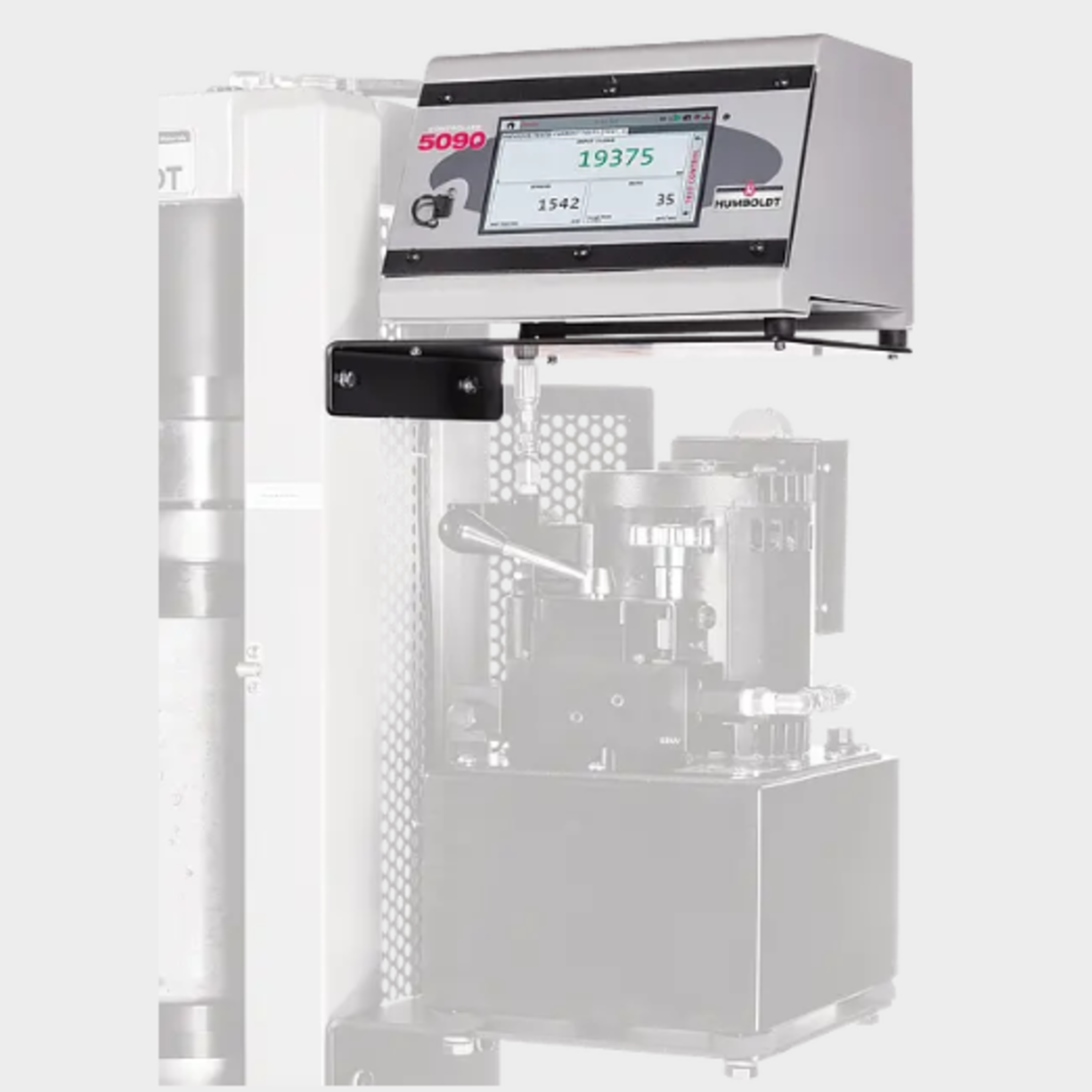

Humboldt’s HCM-5090 digital indicator provides the same platform and many of the same features as the HCM-5080 and HCM-5070 controllers except that it only functions as a digital indicator and works with a manually-operated pump. The HCM-5090 digital indicator includes a mounting bracket for mounting the indicator to the machine.

The HCM-5090 is also available as a retrofit package.

Features

Two channel inputs for load, which allows for the control of two separate compression frames
Provides two additional channel inputs for displacement, which allows performing extensometer and compressometer testing
7", high-resolution color touch-screen display with live readout, graphical and tabular display
Easy test setup, just choose the standard you wish to test for and the controller will walk you through the complete setup
Provides data acquisition of one reading per second
Integral storage within the controller of up to 1000 tests and 3000 points per test
Simple, Fast and accurate machine calibration
Displays in Imperial or metric numbers
