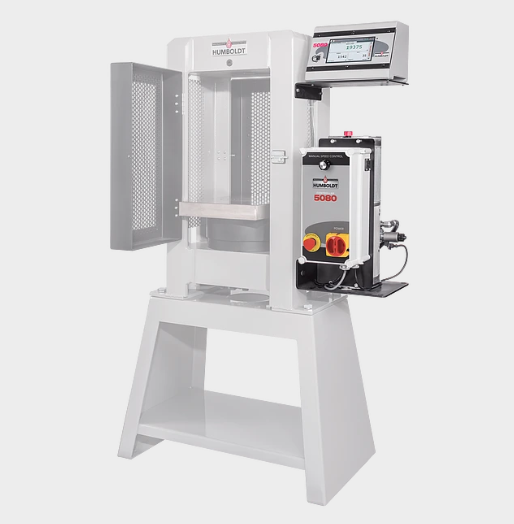

Humboldt HCM-5080 Automatic Controller

Humboldt’s Automatic Pump and Controller System is the most versatile, accurate and easy-to-use concrete compression machine controller available today.

It is designed to make fast work of testing cylinders, cubes and beams with any of Humboldt’s concrete compression machines. It provides an easy-to-use automated testing workflow — just choose the test standard you wish to use from the menu, and you will be quickly guided through the test setup and testing process. It is the ideal automatic system whether you are purchasing a new concrete compression frame or upgrading an existing frame.

The system features a robust, reliable and cool-running 1hp, multi-piston pump, which works together with the controller for full operational control. The controller’s high-resolution, 7-inch, color, touchscreen provides accurate, precision machine operation, setup and calibration. Setup and operation are simple with step-by-step procedures.

Calibration is also easy with the controller, allowing from 1 to 10 points to calibrate the machine in any increment chosen. It also provides an accurate motor-control knob, which allows calibrators to dial in precise calibration loads.

The system provides two channel inputs for load, which can be used to control two separate compression frames when using the HCM-HP4014 selector valve accessory. Two additional channels are provided for displacement, which provides an easy solution for determining Poisson’s ratio and Young’s modulus testing.
The controller also provides data acquisition capabilities of up to 1000 tests with 3000 points per test. This information can be exported via the front USB port and a flash drive.
