Load Frame, Marshall and TSR

Load Frame, Marshall and TSR

Supports the following standards: ASTM D4867, ASTM D5581, AASHTO T245, AASHTO T283, BS 598, EN12697-34

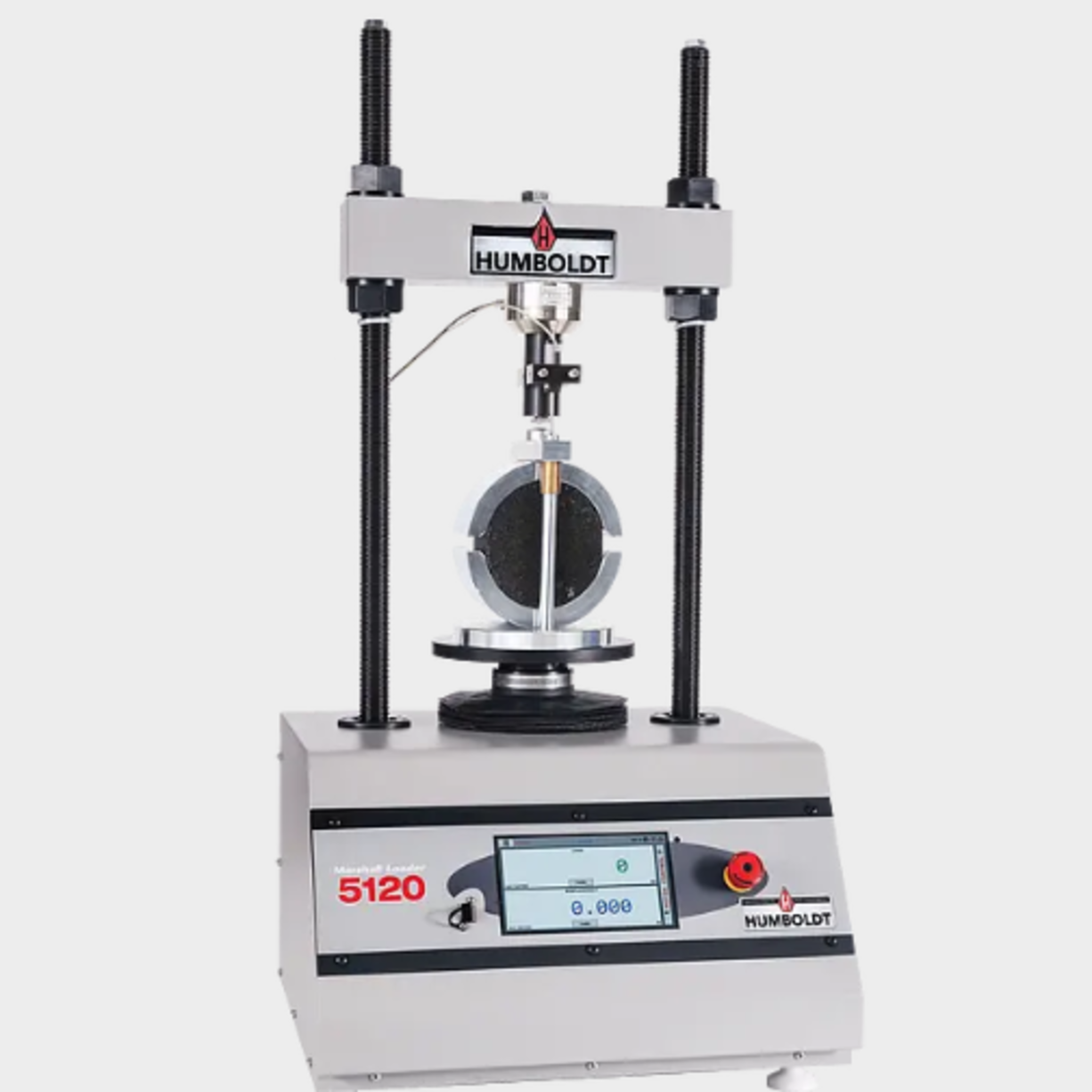

Humboldt’s HM-5120A.3F Load Frame is designed for doing Marshall and TSR testing. Its heavy-duty design and precise stepper-motor control provide a stable platform for years of reliable service. From educational institutions and consulting firms to high-volume commercial labs and construction projects, the Load Frames can perform these applications with ease.

The HM-5120A is built around Humboldt’s integral, data logger with touch-screen control, which allows the load frame to be used as a standalone device capable of full test control and data logging.

It is recommended that users operate the testing procedure from the front panel of the load frame, since Marshall testing is such a short, time-sensitive test.The waterproof, touch screens featured on these load frames provide a colorful, at-a-glance monitoring of testing functions without the use of a computer. Operators can see all the data in several formats at the machine during the testing procedure. Test data can then be transferred to a computer for use with Humboldt’s NEXT Software for report generation. A Marshall-specific software module is also available for use with the NEXT software, which provides Marshall-specific setup and formatting, rather than the generic formatting provided with the basic NEXT software.

Humboldt’s NEXT software is included with all Elite Series Load Frames. In the case of the HM-5120A and Marshall testing, it is recommended this software be used for data acquisition and report generation only and not for control of the machine. In this application the NEXT software can provide advanced graphing capabilities, full-unit customization and reports can also be exported to Excel or a CSV file.

The HM-5120A is sold as a Load Frame ONLY, refer to the accessories tab above for items needed to perform tests with this load frame.

For more detailed information about Marshall Testing, please visit our Asphalt Marshall Testing landing page.

Features

Standalone Control Touch-Screen Controller Provides: Multi-channel data acquisition
Hi-res, 7", waterproof, touch-screen provides total control and real-time graphical display of tests
Machine/Test control and data acquisition via touch-screen
Calibration of channels to load cell and transducer
Real-time graphical chart and numerical display of tests via touch-screen display
Effective sampling rate of 50 readings per second
Stores up to 1000 tests with 3000 points per test
2 USB ports. One in front for data transfer and the rear port is for powering a wireless access point.
