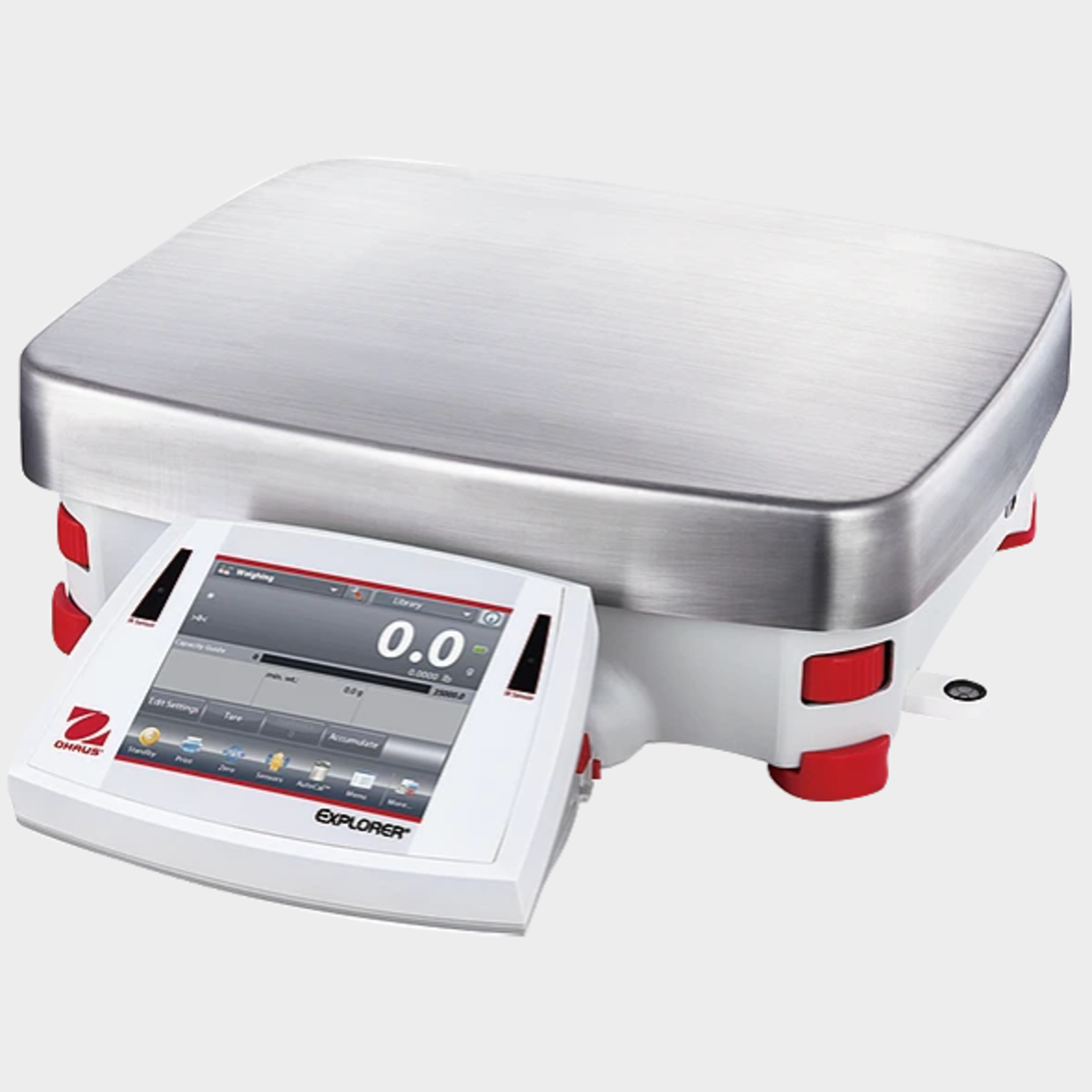

Ohaus Explorer High Capacity Balances, 9,000g - 40,000g

Ohaus Explorer High Capacity Balances, 9,000g - 40,000g

Supports the following standards: ASTM D2041, ASTM C88, ASTM D5581, ASTM C136

Supports Weigh-Below Function
Weigh-below hook accessory included.

The Explorer High-Capacity Balance series includes three high-capacity, precision balances with capacities up to 35 kg. Explorer high-capacity balances offer the same intuitive and modular features as standard Explorer models, such as AutoCal™ fully-automatic internal calibration system, which can also be turned off, 1 second stabilization time, two touchless sensors for operation control, with additional functions and attributes to support higher capacity weighing applications.

Balances include: 5.7" full-color touch screen (640 x 480 pixel), which is removable for remote or column-mount placement, QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data; Easy access communication ports include standard USB and RS232 and an optional third port of either RS232 or ethernet; die-casting housing, stainless steel pan and replaceable in-use cover, and integral weigh below hook.

Features

Equipped with a weighing cell that's precision-machined from a solid metal block, Explorer balances are extremely accurate and durable, and are ideal for laboratory and industrial environments.
Features such as four-level user management with password protection, and un-editable system log plus a high level of configurability make Explorer balances well suited for regulated applications.
A detachable terminal with a large color touchscreen, programmable IR sensors, and a frameless draftshield make Explorer precision balances easy and convenient to use.

Specifications

Applications :

Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics

Display:

5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness

Operation:

AC adapter (included)

Communication:

RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.

Construction:

Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door (1mg models), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover

Design Features:

Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages

All models feature:

0.1g readability Power: AC and internal rechargeable battery Pan size: 15.7" x 11.8" (400 x 300mm)
