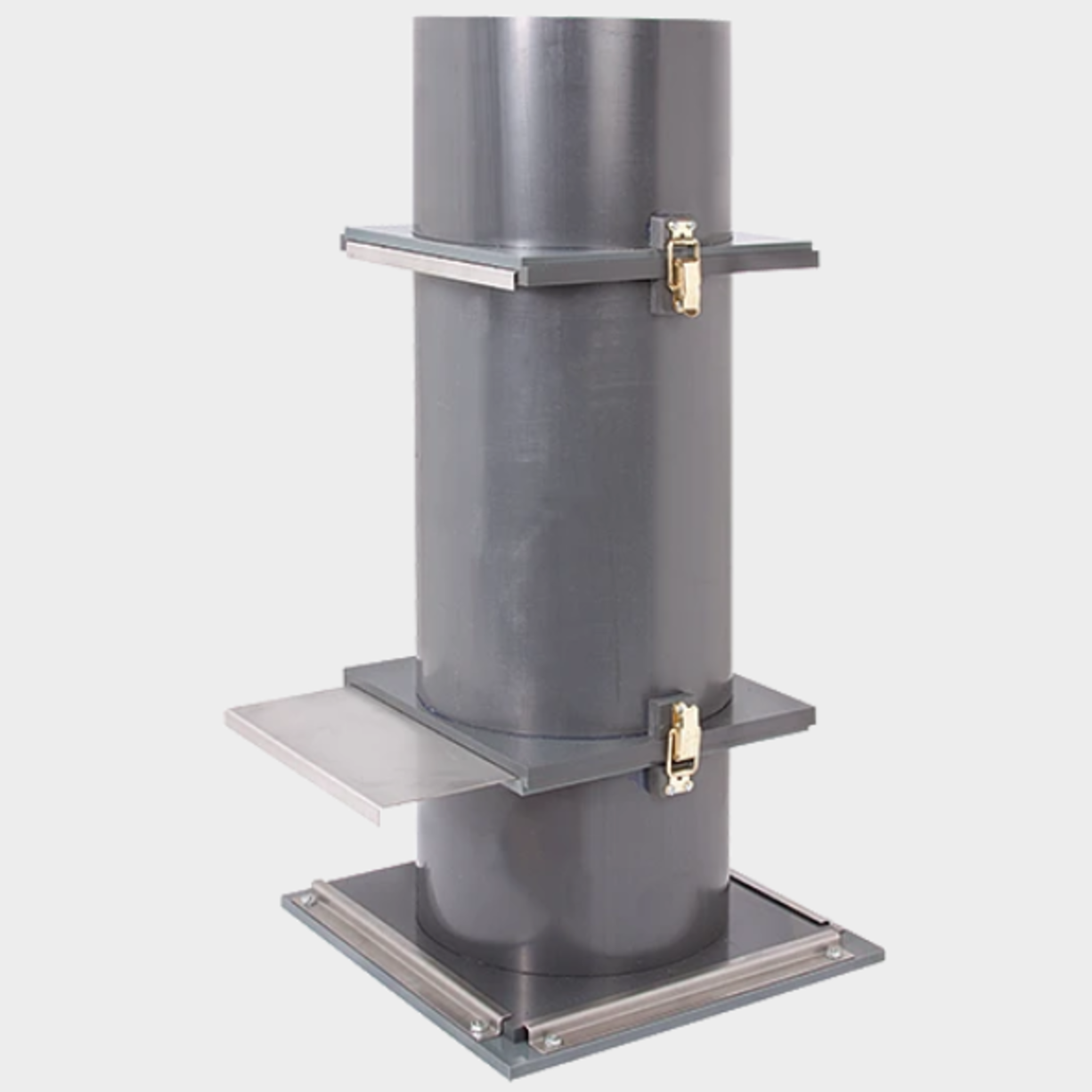

Static Segregation Column

Supports the following standards: ASTM C1610

Used to determine the potential for static segregation of self-consolidating concrete by measuring the coarse aggregate content in the top and bottom portions of a cylindrical specimen. This test can be used as a quality control determination for levels of coarse aggregate segregation, especially for deep section applications like walls or columns. This test is not applicable for self-consolidating concrete with lightweight aggregate. The column includes a stable base, three column sections and two sliding separator blades, which allow the column to be disassembled while capturing the concrete sample in the column sections.
