Temperature/RH Loggers

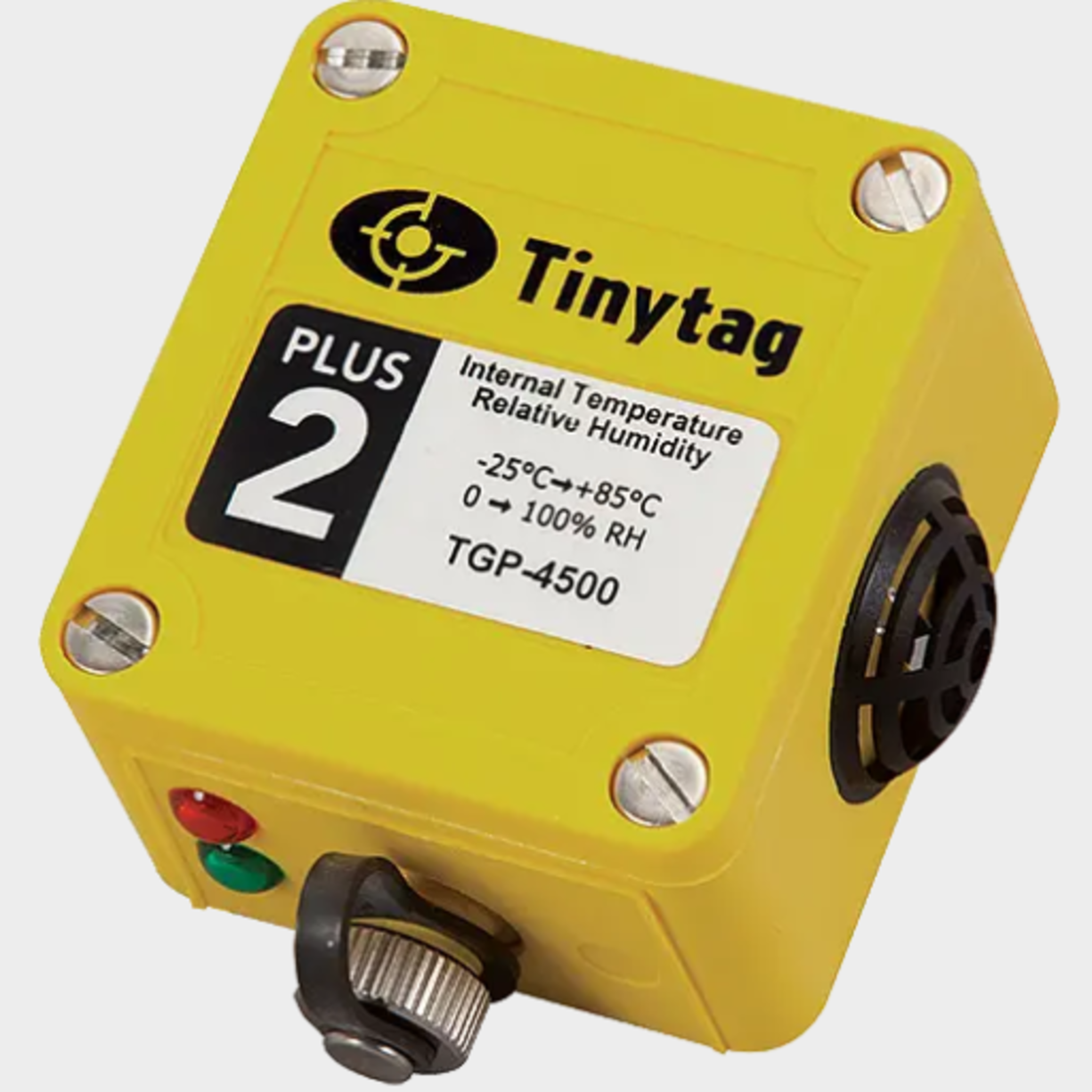

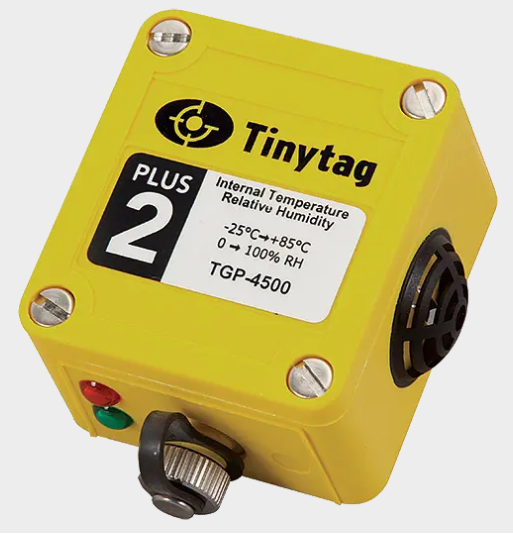

These temperature and relative humidity data loggers are housed in a robust, waterproof (IP68-rated) case, which is designed for use in harsh applications like cylinder curing rooms. They are available with an integral, coated RH sensor (H-2736) or with a temperature and relative humidity probe with a 1.5m cable length (H-2732). The relative humidity probe features a coated RH sensor that shows good resistance to moisture and condensation, ensuring measurement reliability. These data loggers have a high reading resolution and accuracy and provide fast off-load speed and a low battery monitor. Data is downloaded to a computer for viewing, reports and archiving. Data stored on the logger will be retained after a battery is replaced. See tables below for specific logger specifications. Require H-2736SW software and a download cable for operation. Dimensions: 1.75" x 2.25" x 3.15" (34 x 57 x 80mm)

Specifications

Reading Capacity:

32,000

Memory Type :

Non-volatile 64K

Reading Types:

Actual, Min, Max

Delayed Start :

Relative / Absolute (up to 45 days)

Trigger Start :

Magnetic Switch (H-2736.3)

Alarms :

2, fully programmable

Stop Options :

When full, After "n" Readings, Never overwrite oldest data

Operating Range :

-40°F to +185°F -40°C to +85°C

Battery :

User-replaceable Lithium

Temperature Specifications:

Sensor 10K NTC Thermistor Range -13 to 185°F (-25 to 85°C) Response Time 25 mins to 90% FSD in moving air Accuracy 0.01°C or better Relative Humidity Specifications

Relative Humidity Specifications:

Sensor Type Capacitive Reading Range 0 to 100% RH Accuracy ±3.0% at 77°F (25°C) Reading Resolution Better than 0.3% RH Sensor Location Externally mounted Response Time 10 seconds to 90%
