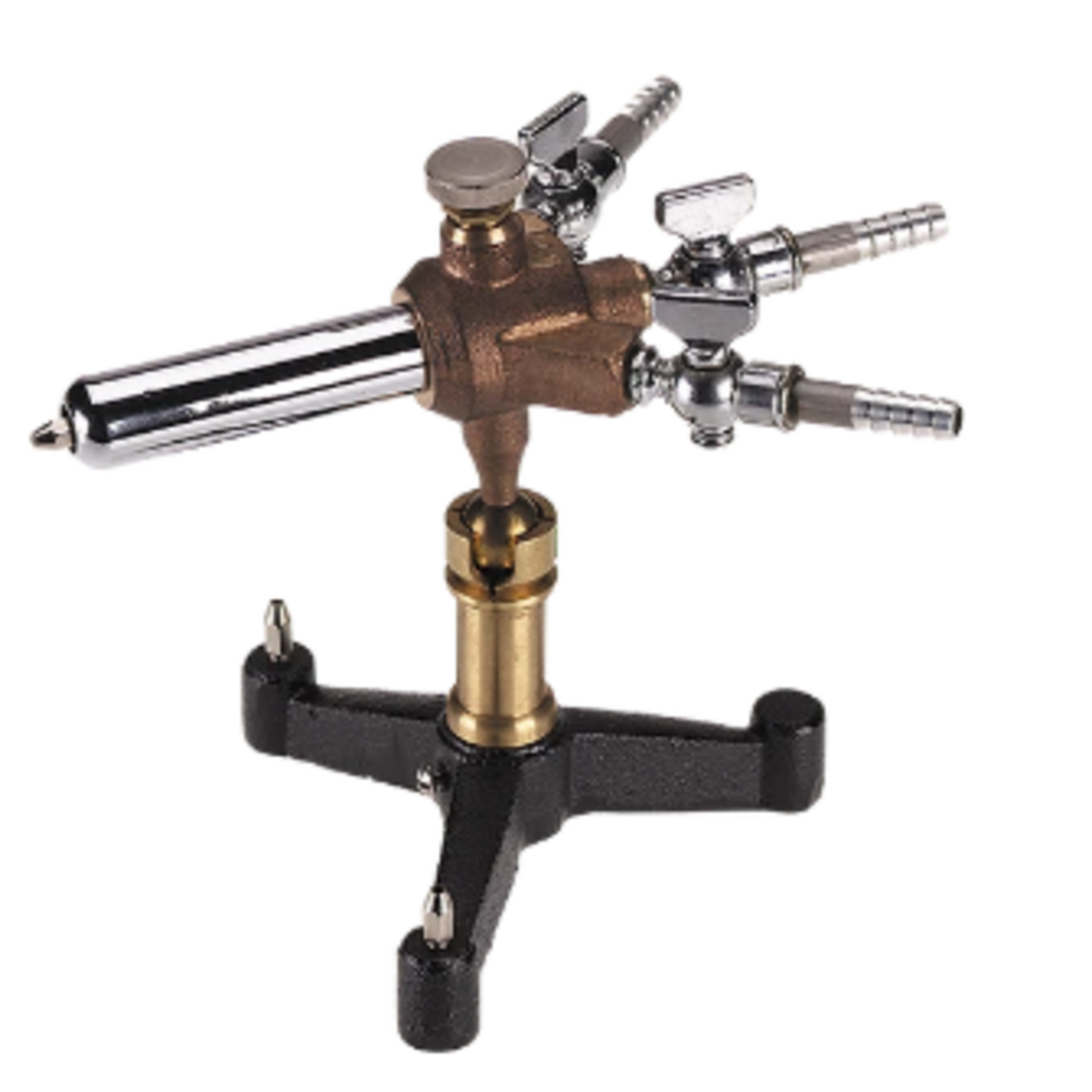

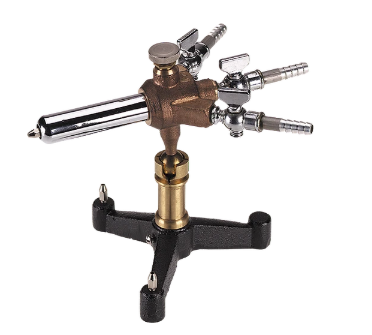

Universal Blast Burner
This bleeder valve unit provides small needle-sized to large brush flame patterns for fusing ore, working Pyrex and soft glasses, and performing other high-temperature melting applications. Extremely accurate flame direction, from three interchangeable burner tips, a telescoping mixing tube sleeve, a universal ball joint that directs the burner head to any angle, and a bleeder valve that controls the injection of air into the gas stream. Stopcock valves control the flow of gas, oxygen, and air. Brass construction.
*Note: CFHs and BTU Outputs are figured on:
5 inch Water Column Pressures for Artificial and Natural Burners. 11 inch Water Column Pressures for LP Burners.
Specifications
Gas type:
Artificial, Natural and LP
Inlet OD:
3/8" (10mm)
CFH*:
40 (60 with LP)
BTU Output*:
41,000 (81,400 with LP)
Overall Height:
8" (203mm)
