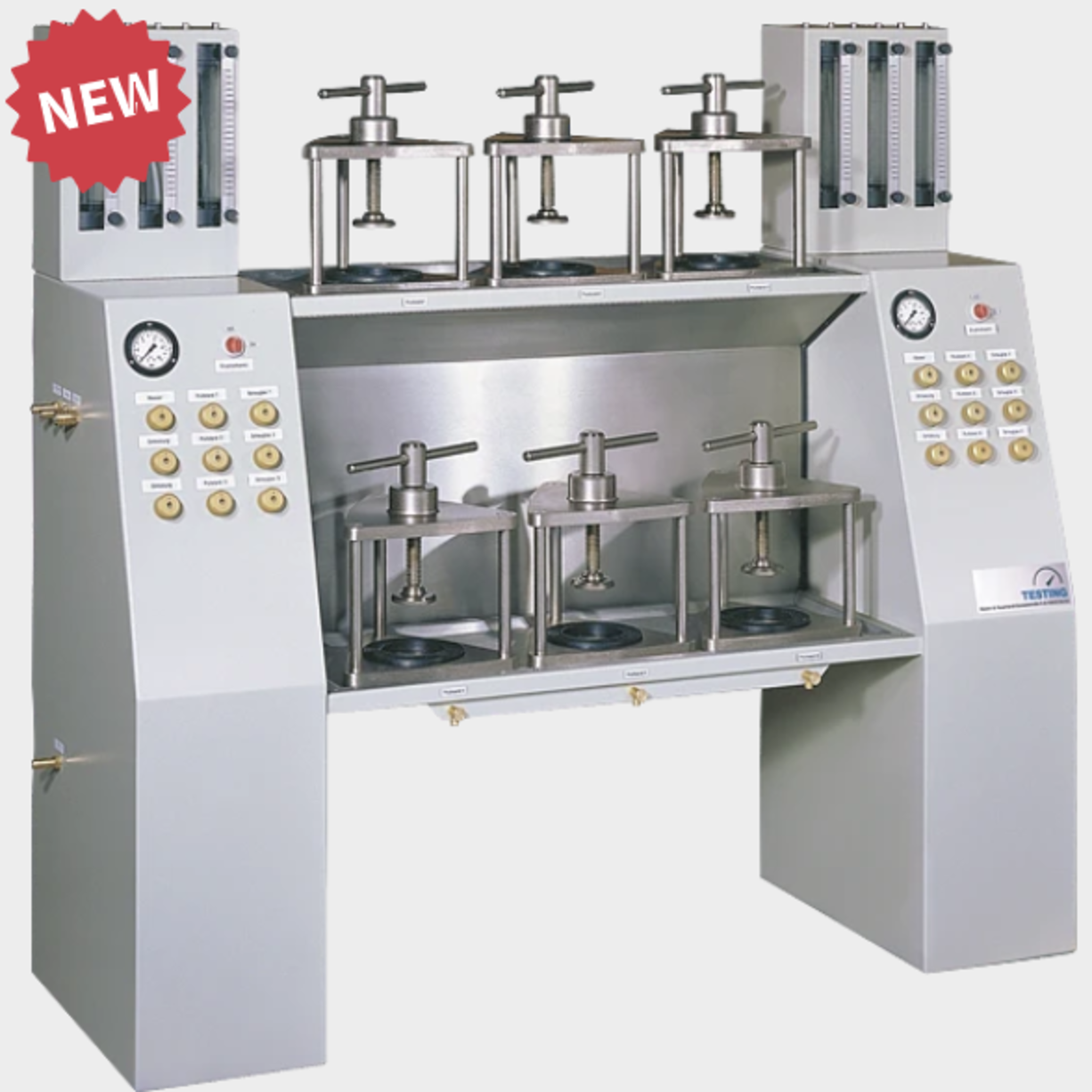

Water Impermeability of Concrete Test Device

Water Impermeability of Concrete Test Device

Supports the following standards: EN 12390-8, ISO 7031, UNI 9533

Used to determine the surface impermeability of concrete by water using concrete test specimens. The device determines the depth of water penetration into hardened concrete under a known time and pressure. Specimens are put into the test chamber, clamped with suitable flanges and gaskets, and then a known water pressure is applied to the specimen’s surface for a time as called for by the Standard. An air compressor is used to provide an adequate and constant pressure. The water penetration is measured by quantitative water penetration measurement using the graduated burettes.

Available with either 3 or 6 test stations, these Impermeability test devices can be used with the following test specimen sizes: 150 x 150 x 120mm, 150 x 150 x 150mm, 200 x 200 x 120mm or 150 x 300mm (requires accessory).

HC-3703 is 3-station
HC-3706 is 6-station

Request a quote
