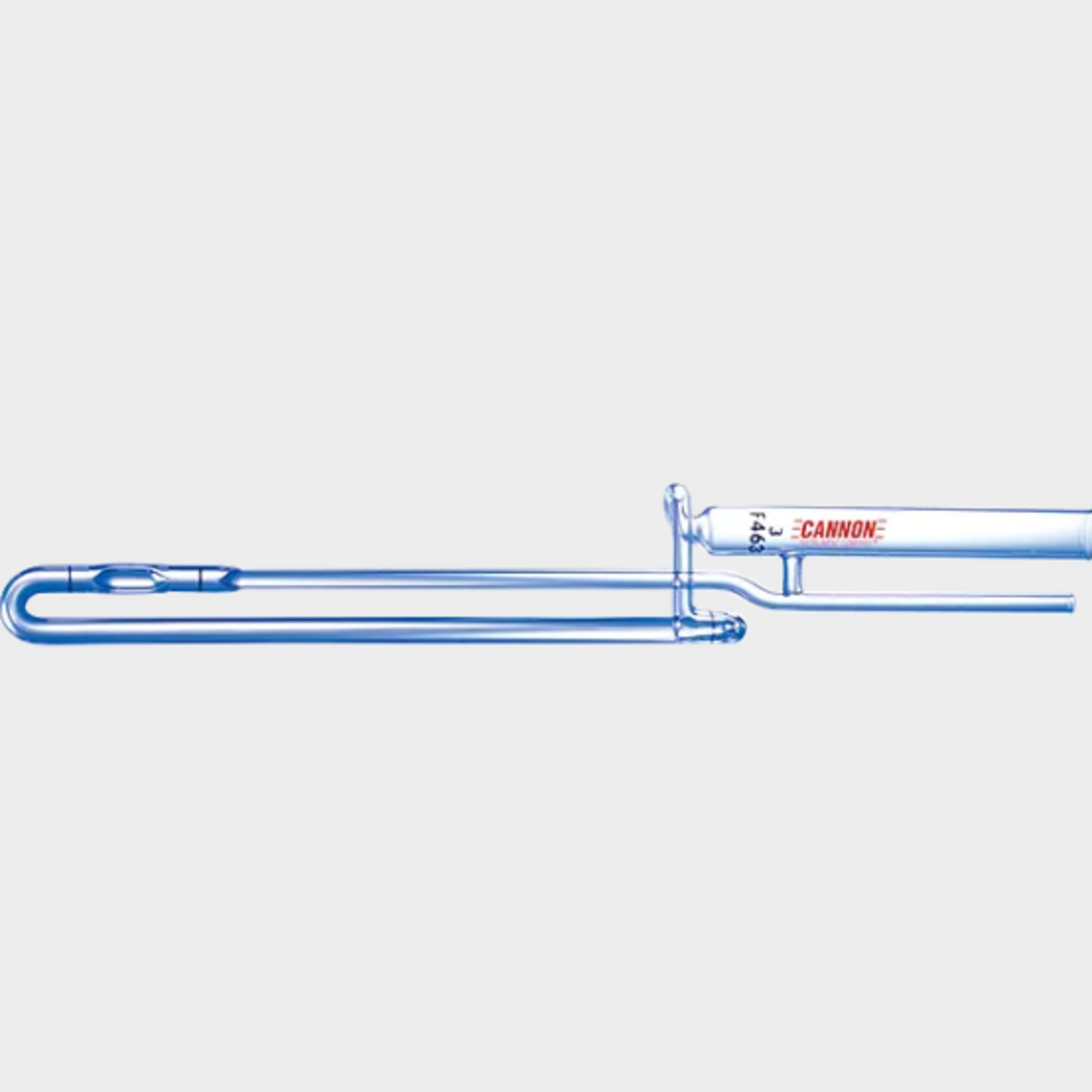

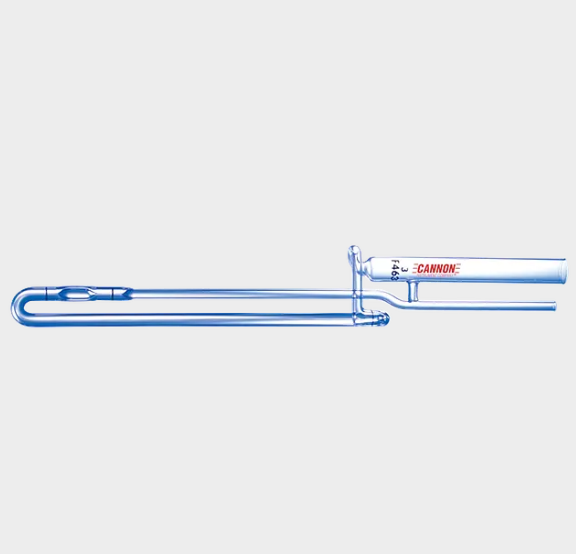

Zeitfuchs® Cross-Arm Viscometer and Holder

Zeitfuchs® Cross-Arm Viscometer and Holder

Supports the following standards: ASTM D2170, ASTM D2171, AASHTO T201, ISO 3105

These models are used to determine kinematic viscosity of liquid asphalts, road oils and distillation residues of liquid asphalts at 140°F (60°C) and of asphalt cements at 275°F (135°C), requiring a charge of only 1 to 3ml. They are easily filled and cleaned while immersed in a temperature bath and need not be removed. The viscometers require a liquid depth of 9" (229mm). Includes round metal holder for 2" (51mm) dia. hole and certificate of calibration.

Specifications Size Approx. Constant Cs/Sec. Range of Centistokes Model 1 0.003 0.6 to 3 H-1746.1 2 0.01 2 to 10 H-1746.2 3 0.03 6 to 30 H-1746.3 4 0.1 20 to 100 H-1746.4 5 0.3 60 to 300 H-1746.5 6 1.0 200 to 1,000 H-1746.6 7 3.0 600 to 3,000 H-1746.7 8 10 2,000 to 10,000 H-1746.8 9 30 6,000 to 30,000 H-1746.9 10 100 20,000 to 100,000 H-1746.10

Request a quote
